ENGINEERING EXPERTISE

 Drawing on decades of engineering advancements, the Honda GX120 engine that powers the WB20 ensures easy starting, easy usage, outstanding fuel economy, low emissions and long-lasting durability.

With oil alert and rubber mounts, the full frame type provides stability and delivers smooth running with less vibration. The result is a reliable, long-lasting pump that will perform time after time.

PERFORMANCE

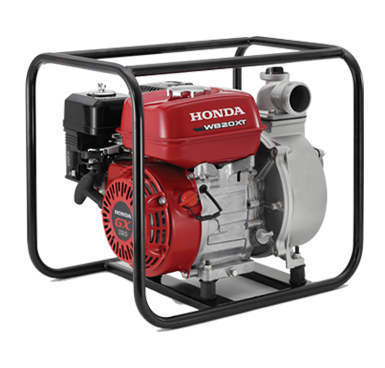

With capacity to deliver 600 litres per minute, this 2" Volume Water Pump has a maximum suction head of 8m and a maximum total head of 32m. Like so many other Honda products, the WB20 starts first time, every time with Honda’s famous one pull easy start system.

It runs on unleaded fuel, so you’ll never have to mix oil and petrol again. The result? An environmentally-friendly pump with low emissions & fuel consumption.

SPECIFICATION

Engine: GX120

Displacement (cc): 118cc

Fuel Type: Unleaded

Fuel Tank Capacity: 2.5 litres

Fuel Consumption: 1 l/hr

Total Head: 32m

Suction Head: 8m

Maximum Pumping Capacity: 600 l/min

Suction Port Diameter: 50mm

Discharge Port Diameter: 50mm

Self Priming Time (at 5m): 110 sec at 5m

Pump Type: Centrifugal volume pump

Oil Alert: Yes

Dimensions (L x W x H ) (mm): 455 x 365 x 420

Dry weight (kg): 21

Mounting Type: Rubber

Hose Band/Stainer: Yes
